AFB不銹鋼耐腐蝕泵在FB型耐腐蝕離心泵的基礎上改進設計的,均采用新型的付葉輪動力軸封裝置，采用先進水力模型，新穎結構與高強度組合式雙端面機械密封，具有高次節能、結構緊湊、性能穩定、使用可靠等優點。屬單級單吸懸臂式耐腐蝕離心泵。該泵與輸送介質接觸的過流部份零件,均采用1Cr18Ni9Ti材料制造。用于輸送不含固體顆粒,有腐蝕性液體,被輸送介質溫度為-20℃～120℃,泵進口壓力不大于2kg/cm2。采用雙端面密封冷卻裝置可輸送300℃左右的高溫介質。
AFB不銹鋼耐腐蝕泵主要應用
AFB不銹鋼耐腐蝕泵泛應用于化工、石油、冶金、輕工、合成纖維、環保、食品、醫藥等部門。該類產品采用雙端面機械密封，為提高產品質量、減少跑、冒、滴、漏,防止污染,改善環境,發揮很大的作用。具有性能穩定可靠、密封性能好,造型美觀,使用檢修方便等優點。

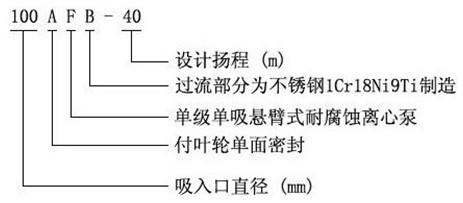

AFB不銹鋼耐腐蝕泵型號表示方法
AFB不銹鋼耐腐蝕泵選型參數
|
型號 |
流量 |
揚程m |
轉數r/min |
效率% |
軸功率kw |
配用功率kw |
汽蝕余量m |
|
|
m3/h |
L/S |
|||||||
|
25FB-16不銹鋼離心泵 |
3.6 |
1 |
16 |
2900 |
33 |
0.48 |
1.1 |
4.0 |
|
25FB-16A不銹鋼離心泵 |
3.27 |
0.91 |
12.5 |
2900 |
34 |
0.34 |
0.75 |
4.0 |
|
25FB-25不銹鋼離心泵 |
3.6 |
1 |
25 |
2900 |
30 |
0.82 |
1.5 |
4.0 |
|
25FB-25A不銹鋼離心泵 |
3.27 |
0.91 |
20 |
2900 |
31 |
0.57 |
1.1 |
4.0 |
|
25FB-40不銹鋼離心泵 |
3.6 |
1 |
40 |
2900 |
23 |
1.71 |
3 |
4.0 |
|
25FB-40A不銹鋼離心泵 |
3.27 |
0.91 |
33.5 |
2900 |
24 |
1.21 |
2.2 |
4.0 |
|
40FB-16不銹鋼離心泵 |
7.2 |
2 |
16 |
2900 |
44 |
0.71 |
1.5 |
4.0 |
|
40FB-16A不銹鋼離心泵 |
6.55 |
182 |
12 |
2900 |
46.7 |
0.5 |
1.1 |
4.0 |
|
40FB-20不銹鋼離心泵 |
7.2 |
2 |
20 |
2900 |
42 |
0.93 |
1.5 |
4.0 |
|
40FB-25不銹鋼離心泵 |
7.2 |
2 |
25 |
2900 |
39 |
1.26 |
2.2 |
4.0 |
|
40FB-25A不銹鋼離心泵 |
6.55 |
1.82 |
20.5 |
2900 |
40 |
0.94 |
1.5 |
4.0 |
|
40FB-40不銹鋼離心泵 |
7.2 |
2 |
40 |
2900 |
32 |
2.45 |
3 |
4.0 |
|
40FB-40A不銹鋼離心泵 |
6.55 |
1.82 |
32 |
2900 |
33.5 |
1.73 |
2.2 |
4.0 |
|
40FB-63不銹鋼離心泵 |
7.2 |
2 |
63 |
2900 |
27 |
5.42 |
7.5 |
4.0 |
|
40FB-63A不銹鋼離心泵 |
6.72 |
1.87 |
56 |
2900 |
29 |
3.75 |
5.5 |
4.0 |
|
50FB-16不銹鋼離心泵 |
14.4 |
4 |
16 |
2900 |
56 |
1.09 |
2.2 |
3.5 |
|
50FB-16A不銹鋼離心泵 |
13.1 |
3.64 |
12 |
2900 |
57 |
0.81 |
1.5 |
3.5 |
|
50FB-25不銹鋼離心泵 |
14.4 |
4 |
25 |
2900 |
52 |
1.83 |
4 |
3.5 |
|
50FB-25A不銹鋼離心泵 |
13.1 |
3.64 |
20 |
2900 |
51.5 |
1.42 |
3 |
3.5 |
|
50FB-40不銹鋼離心泵 |
14.4 |
4 |
40 |
2900 |
46 |
3.32 |
5.5 |
3.5 |
|
50FB-40A不銹鋼離心泵 |
13.1 |
3.64 |
32.5 |
2900 |
45 |
2.62 |
5.5 |
3.5 |
|
50FB-63不銹鋼離心泵 |
14.4 |
4 |
63 |
2900 |
39 |
6.16 |
11 |
3.5 |
|
50FB-63A不銹鋼離心泵 |
13.1 |
3.64 |
54.5 |
2900 |
38 |
5.24 |
7.5 |
3.5 |
|
65FB-25不銹鋼離心泵 |
28.8 |
8 |
25 |
2900 |
62 |
3.16 |
5.5 |
3.5 |
|
65FB-25A不銹鋼離心泵 |
26.2 |
7.28 |
20 |
2900 |
62 |
2.36 |
4 |
3.5 |
|
65FB-30不銹鋼離心泵 |
28.8 |
8 |
30 |
2900 |
60.5 |
3.89 |
7.5 |
3.5 |
|
65FB-30A不銹鋼離心泵 |
26.2 |
7.28 |
25 |
2900 |
61 |
2.79 |
5.5 |
3.5 |
|
65FB-40不銹鋼離心泵 |
28.8 |
8 |
40 |
2900 |
57.5 |
5.46 |
11.5 |
3.5 |
|
65FB-40A不銹鋼離心泵 |
26.2 |
7.28 |
32 |
2900 |
58 |
4 |
7.5 |
3.5 |
|
65FB-64不銹鋼離心泵 |
28.8 |
8 |
64 |
2900 |
52.5 |
9.57 |
15 |
3.5 |
|
65FB-64A不銹鋼離心泵 |
26.2 |
7.28 |
55 |
2900 |
51.5 |
7.82 |
7.5 |
3.5 |
|
80FB-15不銹鋼離心泵 |
54.4 |
15 |
15 |
2900 |
69 |
3.2 |
5.5 |
3.0 |
|
80FB-15A不銹鋼離心泵 |
49.1 |
13.65 |
11.5 |
2900 |
69 |
2.62 |
4 |
3.0 |
|
80FB-24不銹鋼離心泵 |
54.4 |
15 |
24 |
2900 |
68 |
5.19 |
7.5 |
3.0 |
|
80FB-24A不銹鋼離心泵 |
49.1 |
13.65 |
19 |
2900 |
68 |
3.94 |
7.5 |
3.0 |
|
80FB-38不銹鋼離心泵 |
54.4 |
15 |
38 |
2900 |
66.5 |
8.41 |
15 |
3.0 |
|
80FB-38A不銹鋼離心泵 |
49.1 |
13.65 |
30.5 |
2900 |
66.5 |
6.34 |
11 |
3.0 |
|
80FB-60不銹鋼離心泵 |
54.4 |
15 |
60 |
2900 |
62.8 |
14.06 |
22 |
3.0 |
|
80FB-60A不銹鋼離心泵 |
49.1 |
13.65 |
52 |
2900 |
62.5 |
11.56 |
18.5 |
3.0 |
|
100FB-23不銹鋼離心泵 |
100.8 |
28 |
23 |
2900 |
73 |
8.65 |
15 |
3.0 |
|
100FB-23A不銹鋼離心泵 |
91.8 |
25.5 |
17.5 |
2900 |
73 |
6.51 |
11 |
3.0 |
|
100FB-37不銹鋼離心泵 |
100.8 |
28 |
37 |
2900 |
73 |
13.9 |
22 |
3.0 |
|
100FB-37A不銹鋼離心泵 |
91.8 |
25.5 |
29 |
2900 |
70.5 |
11 |
18.5 |
3.0 |
|
100FB-57不銹鋼離心泵 |
100.8 |
28 |
57 |
2900 |
70.5 |
22.2 |
37 |
3.0 |
|
100FB-57A不銹鋼離心泵 |
91.8 |
25.5 |
52 |
2900 |
70.5 |
18.77 |
37 |
3.0 |
|
150FB-22不銹鋼離心泵 |
190.8 |
53 |
22 |
2900 |
77 |
14.86 |
22 |
2.5 |
|
150FB-22A不銹鋼離心泵 |
173.5 |
48.2 |
17.5 |
2900 |
78 |
10.6 |
18.5 |
2.5 |
|
150FB-35不銹鋼離心泵 |
190.8 |
53 |
35 |
2900 |
76 |
23.94 |
37 |
2.5 |
|
150FB-35A不銹鋼離心泵 |
173.5 |
48.2 |
28 |
2900 |
76 |
17.42 |
30 |
2.5 |
|
150FB-56不銹鋼離心泵 |
190.8 |
53 |
56 |
2900 |
76 |
38.3 |
55 |
2.5 |
|
150FB-56A不銹鋼離心泵 |
173.5 |
48.2 |
50 |
2900 |
76 |
32.1 |
37 |
2.5 |
